Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine For Wall Panel

  • 1
  • 2
  • 3

Brand Name : NKH MACHINERY

Model Number : YX10-110-1100

Certification : CE/SONCAP/CSA

Place of Origin : CHINA

MOQ : 1 UNIT

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 UNITS/MONTH

Delivery Time : 40 WORKING DAYS

Packaging Details : NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET

name : wall sheet making machine

Control system : PLC control system

Roller material : 45# steel， CNC lathes, hard chrome coated

Cutting blade material : Cr12, heat treatment

Weight : 5T or as request

Raw material : Pre-painted sheets, 245-550Mpa

Shaft material : 45#, high precision

keyword : roofing sheet corrugating machine

Contact Now

Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine for wall panel
Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine For Wall Panel

Quick Detail:

  1. Thickness : 0.4-0.8mm
  2. Material : G345-550, prepainted sheets
  3. Input width : 1250mm
    1. Effective width: 1100+/-4mm
    2. Material weight: 5 tons cap.
    3. Coil inner diameter : 508mm
    4. Driven way: by 7.5KW driven motor
    5. Cutting way: by 4kw hydraulic power pack
    6. Cutting tolerance : ±1mm

Machine list:

  1. Hydraulic de-coiler with/without coil cart
  2. Roll forming machine
  3. Hydraulic cutting device
  4. Run out table or automatic stacking device if with high speed
  5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW
Coil Inner-diameter= 510±30mm
Load Capacity: Max. 5 Tons
Coil Width Max. 1250mm
Taper wedge expand type
Driving motor to turn the coil, 3KW,
Manual frequency speed control

  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control
To cut off the end of the final piece of sheet only
Working thickness: max. 0.6mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming materialColor steel sheet or galvanized steel sheet
Thickness0.42mm-0.mm
Coil input width1250mm
Carriage Frame designWall-plate-frame-design /New-stand-frame-design
Rolling mills forming stages16 stages
Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated
Option : with roller heat treatment

Shafts DiameterΦ75mm
Main motor power7.5Kw with reducer
Rolling speed of roll former18m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power4.0 Kw
Material of cutting bladeCr12, hear treatment/Cr12Mov, heat treatment
Electric Voltage Standard380V/50Hz/3PH or as the customer's requirements
Major Color of Machine PaintedRAL 5015(Blue) or as per customer’s requirements
  • PLC Control System
  • Product Rack Un-powered, 3 units

Packing standard:

Nude cargoes for roll former


Profile Drawing/Layout/Equipment reference pictures:

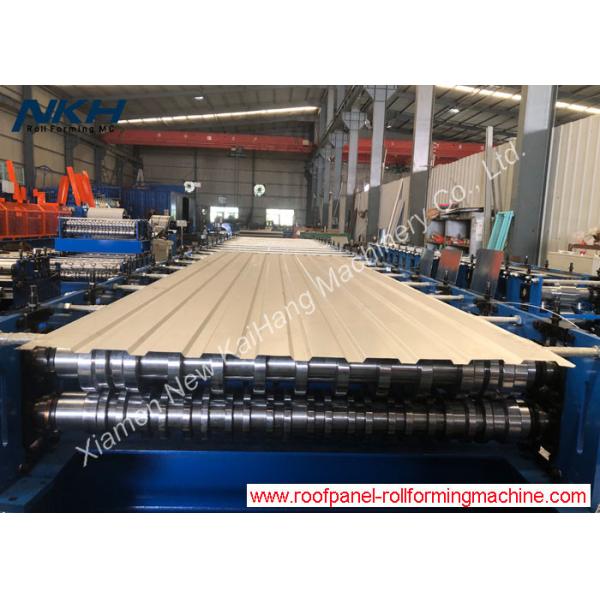

Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine For Wall Panel
Multi Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine For Wall PanelMulti Ribs Roof Roll Forming Machine Trapezoidal Sheet Roll Forming Machine For Wall Panel
