Manual Slitting,Manual Taped/Straight Standing Seam Panel Roll Forming Machine
Product parameter
| Product Name | Standing seam panel/seam lock panel |
| Frame Structure | Stand frame design |
| Roller Flatting System | let the feeding fluently |
| Installation Dimension | 5650mm*1400mm*1500mm |
| Machine Under Frame | 350H-beam |
| Sidewall Plate Thickness | 18mm |
| Roller Stations | 12 Steps |
| Shaft Diameter | 75mm |
| Main Shaft Material | 45# steel with finish turning |
| Roller Material | 45# , CNC lathes, hard chrome coated |
| Chromium Plate Thickness | 0.03mm |
| Motor Power | 7.5kw or 5.5KW |
| Reducer Type | Gear Reducer |
| Chain Wheel and Cycle Chain | 1 inch |
| Roll forming Speed | 18m/min (by inverter). |
| Frequency Converter | Schneider or Shihlin or Delta brand |
| Voltage | 415V/50Hz/3Phase (For confirmation ) |
| Hydraulic Tank | 1 set |
| Hydraulic Pump Station | 3Kw |
| Cutting Length Tolerance | 10m ±1mm; |
| Cutting Tool Material | Cr12 with quenched treatment 58°C-62°C. |
Features
Cutting Device (include 3 fixed size for straight panel only)
Cutting type: Hydraulic cutting
Hydraulic pump station power: 4 KW
Hydraulic pressure: 12Mpa
Hydraulic Blade and cutter material: Cr12, quenching process 58-62
Cutting length tolerance: 10M+/- 1.0 mm
Electrical System
Voltage: 415V, 3 Phase 50Hz
PLC Electrical control system: Siemens
Length Controller: Encoder Frequency Control System
Operation: Touch Screen
Product description
To save the cost, some customer require multi-sizes of standing seam machine in one machine only.
The machine can be have two functions
Function 1: to produce straight sheets
Function 2: to produce taped sheets
So, the design is munal taped slitting machine in 20GP container + standing seam machine (straight and taped) in 20GP container
When the machine produce straight profile, then the cutter made for straight panel only.
When the machine runs taped sheets,
then the taped sheets get from the taped slitting machine

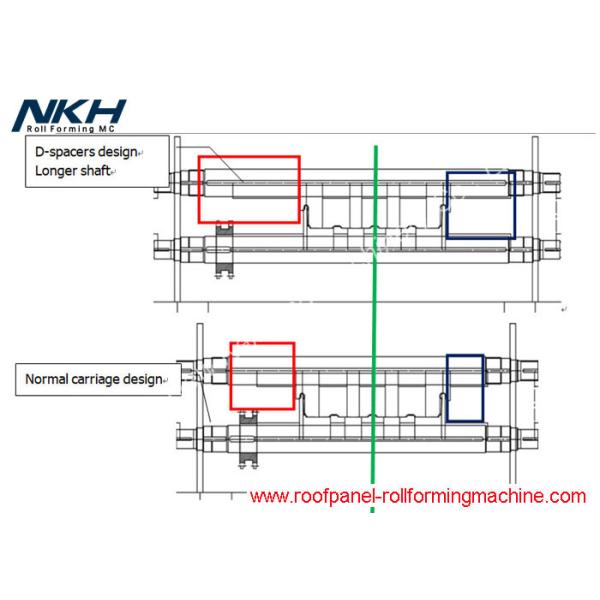

the feed in from two extra shaft for two different shape of sheets.
In this design, the taped panel tolerance is not as good as the auto taped standing seam machine.
